common cab cab850-018

SDLW

Začátečník
#1
Hello,

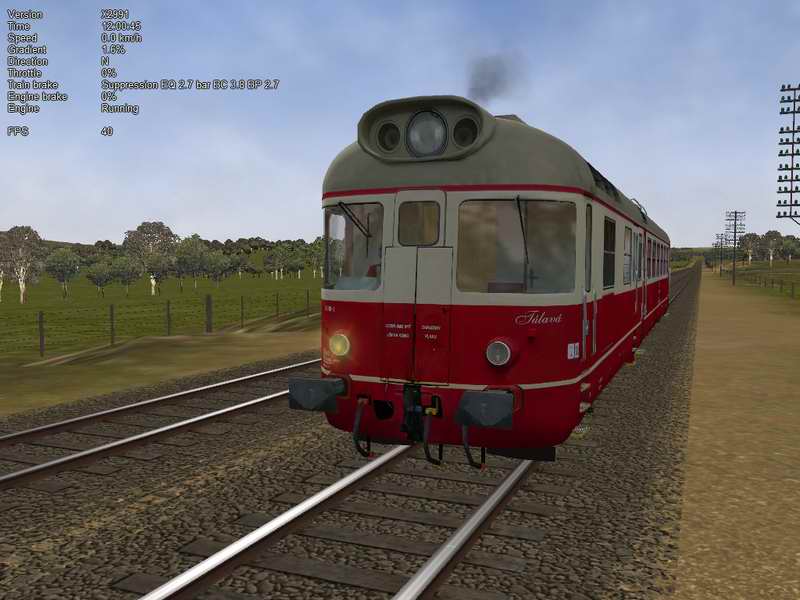

The common cab cab850-018 for ZSR 850 018-3 has this problem in Open Rails as in the screen shot below in Open Rails Version X 2991.
All Open Rails versions have this problem.

It is Ok in Msts.

Download for the model is at this website
http://modely-msts.cz

http://modely-msts.cz/modely/zsr_850-018.exe

There are 2 downloads for the cab
http://modely-msts.cz/kabiny/zsr_850-018_cabview.exe

The update
http://modely-msts.cz/kabiny/zsr_850-018_cabview_upd1.exe

Any help to fix the problem would be appreciated.


Regards Geoff.


SDLW

Začátečník
#3
Hi all,
We have found a solution for the problem.
For Open Rails use replace these lines in the 850-018.cvf file.

Lever (
Type ( THROTTLE LEVER )
Position ( 132 263 250 250 )
Graphic ( "..//..//common.cab//cab850-018//018_kontroler.ace" )
Style ( SPRUNG )
MouseControl ( 1 )
NumFrames ( 16 4 4 )
NumPositions ( 8 0 2 4 6 8 10 12 14 )
NumValues ( 8 0 0.15 0.28 0.42 0.55 0.68 0.849 0.85 )
Orientation ( 0 )
DirIncrease ( 1 )
)
Lever (
Type ( THROTTLE LEVER )
Position ( 323 263 250 250 )
Graphic ( "..//..//common.cab//cab850-018//018_kontroler.ace" )
Style ( SPRUNG )
MouseControl ( 1 )
NumFrames ( 16 4 4 )
NumPositions ( 8 1 3 5 7 9 11 13 15 )
NumValues ( 8 0 0.15 0.28 0.42 0.55 0.68 0.849 0.85 )
Orientation ( 0 )
DirIncrease ( 1 )
)


With these lines.

Lever (
Type ( THROTTLE LEVER )
Position ( 132 263 382 214 )
Graphic ( "..//..//common.cab//cab850-018//018_kontroler.ace" )
Style ( SPRUNG )
MouseControl ( 1 )
NumFrames ( 8 2 4 )
NumPositions ( 8 0 1 2 3 4 5 6 7 )
NumValues ( 8 0 0.15 0.28 0.42 0.55 0.68 0.849 0.85 )
Orientation ( 0 )
DirIncrease ( 1 )
)

This could cause a problem with MSTS in the cab view.

Regards Geoff.
