Podle vašich poloh brzdiče "Notch" musí být hodnoty v cvf i cvf_rv tyto:
NumValues ( 5 0.0 0.3 0.5 0.7 0.9 )

Dan J. · 18 pro 2022

Meda napsal:
Zdravím,
které z uvedených hodnot u loko CD714 jsou správně

Ahoj, hele tohle zkusím jěště opravit já, včera jsem ještě opravoval kouř z nafty, který býl úplně mimo komínky.

Dan J. · 18 pro 2022

Icik napsal:
Podle vašich poloh brzdiče "Notch" musí být hodnoty v cvf i cvf_rv tyto:
NumValues ( 5 0.0 0.3 0.5 0.7 0.9 )

Super a dík, kouknu na to. Teď dávám dohromady k vydání všechny 809, 810 a přívěšáky od Pikka a skiny na ně co vyšly. Topení , dveře. Pak dotáhnu tu 714.

Dan J. · 18 pro 2022

Icik napsal:
Podle vašich poloh brzdiče "Notch" musí být hodnoty v cvf i cvf_rv tyto:
NumValues ( 5 0.0 0.3 0.5 0.7 0.9 )

Tak ať tam čumím do toho engu jak bacil do lékárny, tak to tam nemůžu najít.

Mám už opravu co posílal Meda

okoun · 18 pro 2022

Já se ohledně Pikkovi tvorby asi nejvíce těším na 560. (Není-li tvorba těchto souprav na mrtvém bodě). Pořádné modely 560tek opravdu velmi chybí. I v TT je nahrazuji vším, co jde.

Icik · 18 pro 2022

Dan J. napsal:
Tak ať tam čumím do toho engu jak bacil do lékárny, tak to tam nemůžu najít. Mám už opravu co posílal Meda

Co nemůžeš najít? NumValues? To je v kabině cvf a cvf_rv.

Dan J. · 18 pro 2022

Bo jsem šu.in a mohl jsem čumět do toho klidně půl dne, bo už jsem byl tak zblblej, že jsem to hledal v eng. namísto v cvf.

Dan J. · 18 pro 2022

Tak a všechno funguje, jen ještě průser u Rv verze modelu i po přechodu je situace stejná, tam je páka zase rozsypaná (posunutá doprava) to opravím kde?

A bude komplet hotovo.

Icik · 18 pro 2022

Vy to máte celé nějaké pomatené. OBE ovladač pro 714 má pro tuto kabinu jen 6 poloh. Chybí závěrná poloha. Tak to bude bez ní.

Vlakovou brzdu v eng zaměň za tento zápis BSE:

Kód:

comment (** Brzdic DAKO BSE **)
            Brake_Train    ( 0 1 0.05 0.60
                NumNotches ( 6
                    Notch ( 0 0 TrainBrakesControllerFullQuickReleaseStart )
                    Notch ( 0.10 0 TrainBrakesControllerOverchargeStart )
                    Notch ( 0.40 0 TrainBrakesControllerReleaseStart )
                    Notch ( 0.60 0 TrainBrakesControllerNeutralhandleOffStart )
                    Notch ( 0.80 0 TrainBrakesControllerApplyStart )
                    Notch ( 0.95 0 TrainBrakesControllerEmergencyStart )
                )
            )

V kabině cvf a cvf_rv zaměň zápis za tento:

Kód:

Lever ( Type ( TRAIN_BRAKE LEVER )
 Position ( 434 331 200 120 )
 Graphic ( "..//..//common.cab//cab714-023//714023_OBE.ace" )
 Style ( NOT_SPRUNG )
 MouseControl ( 1 )
 NumFrames ( 6 6 1 )
 NumPositions ( 6 0 1 2 3 4 5 )
 NumValues ( 6 0 0.1 0.4 0.6 0.8 0.95 )
 Orientation ( 0 )
 DirIncrease ( 0 )
 ScaleRange ( 0 1 )
 )

Samozřejmě koukni na cestu k té textuře "714023_OBE.ace".

Icik · 18 pro 2022

Koukám teď, že existuje víc verzí - OBE s 5 polohami (bez polohy nízkotlakého přebití) a pak OBE se 6 polohami, co jsem dával zápisy.
Tak si to musíte ohlídat, abyste tam dali tu správnou 6 polohovou texturu OBE ovladače.

Dan J. · 18 pro 2022

Prosím tě, co to máš za eng? Já originál pro OR od Pikka a tam je zápis takto:

Kód:

 Brake_Train ( 0 1 0.1 0.5
 NumNotches ( 5
 Notch ( 0.0 0 TrainBrakesControllerFullQuickReleaseStart )
 Notch ( 0.3 0 TrainBrakesControllerReleaseStart )
 Notch ( 0.5 0 TrainBrakesControllerApplyStart )
 Notch ( 0.7 0 TrainBrakesControllerContinuousServiceStart )
 Notch ( 0.9 0 TrainBrakesControllerEmergencyStart )
 ) )

Pro jsitotu celý eng:

Kód:

SIMISA@@@@@@@@@@JINX0D0t______

Wagon ( 714203cd_
 Type ( Engine )
 WagonShape ( 714203cd_.s )
 Size ( 3.03m 5.22m 13.83m )
 CentreOfGravity ( 0m 2.25m 0m )
 Mass ( 64t )
 WheelRadius ( 0.5m )
 InertiaTensor ( Box ( 3.03m 5.22m 13.83m ) )

Coupling (
        Type ( Chain )
        Spring (
            Stiffness ( 7.5E6N/m 1E7N/m )
            Damping ( 1E6N/m/s 2E6N/m/s )
            Break ( 1.1E7N 5E7N )
            r0 ( 30cm 60cm )
        )
        CouplingHasRigidConnection ( 0 )
        Velocity ( 0.01m/s )
    )
    Coupling (
        Type ( Chain )
        Spring (
            Stiffness ( 7.5E6N/m 1E7N/m )
            Damping ( 1E6N/m/s 2E6N/m/s )
            Break ( 1.1E7N 5E7N )
            r0 ( 30cm 60cm )
        )
        CouplingHasRigidConnection ( 0 )
        Velocity ( 0.01m/s )
    )
    Buffers (
        Spring (
            Stiffness ( 1E6N/m 5E6N/m )
            Damping ( 1E6N/m/s 1E6N/m/s )
            r0 ( 60cm 30cm )
        )
        Centre ( 0.5m )
        Radius ( 1m )
        Angle ( 0.5deg )
    )

 Adheasion ( 0.4 0.8 2 0 )
 DerailRailHeight ( 10cm )
 DerailRailForce ( 2.5*64t )
 DerailBufferForce ( 350kN )
 NumWheels ( 8 )

 Friction ( 100N/m/s 1 -1mph 0 1 5.1N/rad/s 1 -1rad/s 0 1 )

 BrakeEquipmentType ( "Handbrake, Triple_valve, Auxilary_reservoir" )
 BrakeSystemType ( "Air_single_pipe" )

 MaxBrakeForce ( 54kN )
 BrakeCylinderPressureForMaxBrakeBrakeForce ( 56 )
 EmergencyBrakeResMaxPressure ( 72 )
 TripleValveRatio ( 2.53 )
 MaxReleaseRate ( 3 )
 MaxApplicationRate ( 3 )
 MaxAuxilaryChargingRate ( 3 )
 EmergencyResChargingRate ( 3 )
 EmergencyResCapacity ( 0.81 )
 MaxHandbrakeForce ( 20kN )
 NumberOfHandbrakeLeverSteps ( 10 )

 PassengerCapacity ( 4 )

 IntakePoint ( -3.33 0 FuelDiesel )
 IntakePoint ( 3.33 0 FuelDiesel )

 Lights ( 28  Comment ( Svetla CD-1 TADEUS )

 Comment ( Svetelne kuzely )

 Light ( Comment ( Svetelny kuzel tlumeny )
 Type ( 1 )
 Conditions (
 Headlight ( 2 )
 TimeOfDay ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( 0 3 2 )
 Angle ( 25 )
 Transition ( 0 )
 Radius ( 20 )
 ) ) )

 Light ( Comment ( Svetelny kuzel plny )
 Type ( 1 )
 Conditions (
 Headlight ( 3 )
 TimeOfDay ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( 0 3 2 )
 Angle ( 25 )
 Transition ( 0 )
 Radius ( 40 )
 ) ) )

 Comment ( Reflektory )

 Light ( Comment ( Predni reflektor levy tlumeny PK )
 Type ( 0 )
 Conditions (
 Headlight ( 2 )
 Control ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( -0.1 2.98 6.16 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Predni reflektor levy plny PK )
 Type ( 0 )
 Conditions (
 Headlight ( 3 )
 Control ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFFF )
 Position ( -0.1 2.98 6.16 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Predni reflektor levy TR )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( -0.1 2.98 6.16 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Predni reflektor pravy tlumeny PK )
 Type ( 0 )
 Conditions (
 Headlight ( 2 )
 Control ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( 0.1 2.98 6.16 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Predni reflektor pravy plny PK )
 Type ( 0 )
 Conditions (
 Headlight ( 3 )
 Control ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFFF )
 Position ( 0.1 2.98 6.16 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Predni reflektor pravy TR )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( 0.1 2.98 6.16 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Zadni reflektor levy tlumeny ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 2 )
 Control ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( -0.1 3.07 -6.08 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Zadni reflektor levy plny ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 3 )
 Control ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFFF )
 Position ( -0.1 3.07 -6.08 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Zadni reflektor pravy tlumeny ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 2 )
 Control ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( 0.1 3.07 -6.08 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Zadni reflektor pravy plny ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 3 )
 Control ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFFF )
 Position ( 0.1 3.07 -6.08 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Comment ( Pozicni predni )

 Light ( Comment ( Predni leve bile PK + TR )
 Type ( 0 )
 Conditions (
 Service ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( -0.95 1.93 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni leve bile posun ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 1 )
 Control ( 2 )
 Unit ( 4 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( -0.95 1.93 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni leve cervene ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 4 )
 Control ( 2 )
 Unit ( 4 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( -0.95 1.68 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni prave bile PK + TR )
 Type ( 0 )
 Conditions (
 Service ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( 0.95 1.93 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni prave bile posun ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 1 )
 Control ( 2 )
 Unit ( 4 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( 0.95 1.93 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni prave cervene ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 4 )
 Control ( 2 )
 Unit ( 4 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( 0.95 1.68 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni prave bile LC )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 1 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFF99 )
 Position ( 0.95 1.93 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Comment ( Pozicni zadni )

 Light ( Comment ( Zadni leve bile ZK )
 Type ( 0 )
 Conditions (
 Service ( 2 )
 Control ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( -0.95 1.93 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni leve bile posun PK )
 Type ( 0 )
 Conditions (
 Headlight ( 1 )
 Control ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( -0.95 1.93 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni leve cervene PK )
 Type ( 0 )
 Conditions (
 Headlight ( 4 )
 Control ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( -0.95 1.68 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni leve cervene TR )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( -0.95 1.68 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni prave bile ZK )
 Type ( 0 )
 Conditions (
 Control ( 2 )
 Service ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( 0.95 1.93 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni prave bile posun PK )
 Type ( 0 )
 Conditions (
 Headlight ( 1 )
 Control ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( 0.95 1.93 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni prave cervene PK )
 Type ( 0 )
 Conditions (
 Headlight ( 4 )
 Control ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( 0.95 1.68 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni prave cervene TR )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( 0.95 1.68 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni prave bile LC )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 1 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFF99 )
 Position ( 0.95 1.93 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )
 )

 Sound ( "714203_eng.sms" )
 )

Engine ( 714203cd_
 Wagon ( 714203cd_ )
 Name ( "CD 714 203-7" )
 Type ( Diesel )
 DieselEngineType ( electric )
 MaxCurrent ( 915A )
 MaxPower ( 360kW )
 MaxForce ( 190kN )
 MaxContinuousForce ( 190kN )
 MaxVelocity ( 80km/h )
 DieselEngineSpeedOfMaxTractiveEffort ( 1km/h )
 WheelRadius ( 0.5m )
 Sanding ( 80km/h )
 MaxSandingTime ( 800 )
 NumWheels ( 8 )
 MaxTemperature ( 120 )
 MaxOilPressure ( 90 )
 Sound ( "714203_cab.sms" )
 CabView ( "714023.cvf" )
 HeadOut ( 1.6 3.5 -1.55 )

 BrakesEngineBrakeType ( Air_single_pipe )
 BrakesTrainBrakeType ( Air_single_pipe )
 BrakesEngineControllers( "Independent, Train, Dynamic" )

 AirBrakesAirCompressorPowerRating ( 2 )
 AirBrakesMainMaxAirPressure ( 144 )
 AirBrakesCompressorRestartPressure ( 116 )
 AirBrakesMainMinResAirPressure ( 0 )
 AirBrakesMainResVolume ( 40 )
 AirBrakesAirUsedPerPoundsOfBrakePipePressure ( 1.0 )
 AirBrakesHasLowPressureTest( 0 )
 AirBrakesIsCompressorElectricOrMechanical ( 1 )

 EngineBrakesControllerHasProportionalBrake ( 0 )
 EngineBrakesProportionalBrakeLag ( 2.53 )
 EngineBrakesControllerMaxReleaseRate ( 3 )
 EngineBrakesControllerMaxApplicationRate ( 3 )
 EngineBrakesControllerMaxSystemPressure ( 73 )
 EngineBrakesControllerFullServicePressureDrop ( 23 )
 EngineBrakesControllerMinPressureReduction ( 50 )
 EngineBrakesControllerMinSystemPressure ( 0 )
 EngineBrakesControllerEmergencyBrakeTimePenalty ( 0 )

 TrainBrakesControllerMinPressureReduction ( 0.1 )
 TrainBrakesControllerMaxQuickReleaseRate ( 5 )
 TrainBrakesControllerMaxReleaseRate ( 2 )
 TrainBrakesControllerMaxApplicationRate ( 2 )
 TrainBrakesControllerEmergencyApplicationRate ( 8 )
 TrainBrakesControllerMaxSystemPressure ( 73 )
 TrainBrakesControllerFullServicePressureDrop ( 73 )
 TrainBrakesControllerMinSystemPressure ( 0 )
 TrainPipeLeakRate ( 0.1 )
 TrainBrakesControllerEmergencyBrakeTimePenalty ( 0 )

 EngineVariables ( 3600 )
 MaxDieselLevel ( 4000l )
 DieselUsedPerHourAtMaxPower ( 200l )
 DieselUsedPerHourAtIdle ( 10l )
 DieselSmokeEffectInitialMagnitude ( 1.1 )
 DieselSmokeEffectMaxMagnitude ( 2.5 )
 DieselSmokeEffectInitialSmokeRate ( 0.5 )
 DieselSmokeEffectMaxSmokeRate ( 2.5 )
 DieselEngineStallRPM ( 600 )
 DieselEngineIdleRPM ( 600 )
 DieselEngineMaxRPM ( 1800 )
 DieselEngineMaxRPMChangeRate ( 100 )

 DoesBrakeCutPower ( 1 )
 DoesHornTriggerBell ( 0 )

 DynamicBrakesResistorCurrentLimit ( 1000 )
 DynamicBrakesDelayTimeBeforeEngaging ( 0 )
 DynamicBrakesMaxAirBrakePressure ( 30 )
 DynamicBrakeHasAutoBailOff ( 0 )
 DynamicBrakesMaximumForce ( 110kN )
 DynamicBrakesHigherSpeedCurveExponent ( 2 )
 DynamicBrakesLowerSpeedCurveExponent ( 2 )
 DynamicBrakesMaximumSpeedForFadeOut ( 130 )
 DynamicBrakesMaximumEffectiveSpeed ( 60 )
 DynamicBrakesFadingSpeed ( 7 )
 DynamicBrakesMinUsableSpeed ( 2 )
 DynamicBrakesCutInSpeed ( 2 )
 DynamicBrakesCutOutSpeed ( 2 )
 DynamicBrakesEffectAtMaximumFadeOut ( 1 )

 Effects ( DieselSpecialEffects (
 Exhaust1 ( -0.6 4.5 -0.35 0 1 0 0.1 )
 Exhaust2 ( -0.6 4.5 -0.15 0 1 0 0.1 )
 ) )

 VigilanceMonitor (
 MonitoringDeviceMonitorTimeLimit ( 27 )
 MonitoringDeviceAlarmTimeLimit ( 17 )
 MonitoringDevicePenaltyTimeLimit ( 0 )
 MonitoringDeviceCriticalLevel ( 0 )
 MonitoringDeviceResetLevel ( 0 )
 MonitoringDeviceAppliesFullBrake ( 0 )
 MonitoringDeviceAppliesEmergencyBrake ( 1 )
 MonitoringDeviceAppliesCutsPower ( 1 )
 MonitoringDeviceAppliesShutsDownEngine ( 0 )
 MonitoringDeviceResetOnZeroSpeed ( 1 )
 MonitoringDeviceResetOnResetButton ( 1 )
 )
 EmergencyStopMonitor (
 MonitoringDeviceMonitorTimeLimit ( 0 )
 MonitoringDeviceAlarmTimeLimit ( 0 )
 MonitoringDevicePenaltyTimeLimit ( 0 )
 MonitoringDeviceCriticalLevel ( 0 )
 MonitoringDeviceResetLevel ( 0 )
 MonitoringDeviceAppliesFullBrake ( 1 )
 MonitoringDeviceAppliesEmergencyBrake ( 1 )
 MonitoringDeviceAppliesCutsPower ( 1 )
 MonitoringDeviceAppliesShutsDownEngine ( 0 )
 MonitoringDeviceResetOnZeroSpeed ( 1 )
 MonitoringDeviceResetOnResetButton ( 1 )
 )

 EngineControllers (
 AWS ( 0 1 0 )
 BailOffButton ( 0 1 0 )
 BellToggle ( 0 1 0 )
 Brake_Dynamic ( 0 1 0.01 0.0
 NumNotches ( 10
 Notch ( 0.00 0 Dummy )
 Notch ( 0.20 0 Dummy )
 Notch ( 0.30 0 Dummy )
 Notch ( 0.40 0 Dummy )
 Notch ( 0.50 0 Dummy )
 Notch ( 0.60 0 Dummy )
 Notch ( 0.70 0 Dummy )
 Notch ( 0.80 0 Dummy )
 Notch ( 0.90 0 Dummy )
 Notch ( 1.00 0 Dummy )
 ) )
 Brake_Engine ( 0 1 0.1 0.0
 NumNotches ( 3
 Notch ( 0.0 0 EngineBrakesControllerReleaseStart )
 Notch ( 0.5 0 EngineBrakesControllerNeutralhandleOffStart )
 Notch ( 0.9 0 EngineBrakesControllerFullServiceStart )
 ) )
 Brake_Hand ( 0 1 0.1 0
 NumNotches ( 1
 Notch ( 0 1 Dummy )
 ) )
 Brake_Train ( 0 1 0.1 0.5
 NumNotches ( 5
 Notch ( 0.0 0 TrainBrakesControllerFullQuickReleaseStart )
 Notch ( 0.3 0 TrainBrakesControllerReleaseStart )
 Notch ( 0.5 0 TrainBrakesControllerApplyStart )
 Notch ( 0.7 0 TrainBrakesControllerContinuousServiceStart )
 Notch ( 0.9 0 TrainBrakesControllerEmergencyStart )
 ) )
 Combined_Control ( 0 2 1 1 throttle dynamic )
 DirControl ( -1 0 1 1 )
 EmergencyStopToggle ( 0 1 0 )
 Headlights ( 0 0.25 1 0 )
 Horn ( 0 1 0 )
 Sanding ( 0 1 0 )
 Throttle ( 0 1 0.01 0
 NumNotches ( 10
 Notch ( 0.00 0 Dummy )
 Notch ( 0.04 0 Dummy )
 Notch ( 0.08 0 Dummy )
 Notch ( 0.11 0 Dummy )
 Notch ( 0.17 0 Dummy )
 Notch ( 0.27 0 Dummy )
 Notch ( 0.42 0 Dummy )
 Notch ( 0.61 0 Dummy )
 Notch ( 0.81 0 Dummy )
 Notch ( 1.00 0 Dummy )
 ) )
 Vigilance ( 0 1 0 )
 Wipers ( 0 1 0 )
 )

 Description (
 "Rada CD 714 je urcena pro provoz na vedlejsich tratich s promennou zatezi nakladnich vlaku, \n"+
 "posun nebo v osobni doprave s pripojnymi vozy 010, 021, 042, 043.\n"+
 "Rekonstrukce rady 735.\n\n"+
 "Trvaly vykon spal. motoru:\n"+
 " 2x250 kW ( 714.001-004 ) \n"+
 " 2x300 kW ( 714.005-029;714.2 ) \n"+
 "Prenos vykonu: el.AC/DC - 2x260kW\n"+
 "Max.rychlost: 80km/h\n"+
 "Vyska: 4405 mm\n"+
 "Sirka: 3050 mm\n"+
 "Delka: 14240 mm\n"+
 "Sluz. hmotnost:\n"+
 " 56t ( 714.001,02 ) \n"+
 " 64t ( 714.003-29 ) \n"+
 " 60t ( 714.2 ) \n"+
 "Uspor. pojezdu: BoBo \n"+
  "  \n"+
 "Verze nastaveni 2012-05-24-b57-kuple70-17eng \n"+
 ". "
 )

 EngineOperatingProcedures (
 " \n"+
 " .\n"+
 " " )
 )

Rv verze eng

Kód:

SIMISA@@@@@@@@@@JINX0D0t______

Wagon ( 714203cd_rev
 Type ( Engine )
 WagonShape ( 714203cd_rev.s )
 Size ( 3.03m 5.22m 13.83m )
 CentreOfGravity ( 0m 2.25m 0m )
 Mass ( 64t )
 WheelRadius ( 0.5m )
 InertiaTensor ( Box ( 3.03m 5.22m 13.83m ) )

 Coupling ( Type ( Chain )
 Spring ( Stiffness ( 7.5E6N/m 1E7N/m ) Damping ( 1E6N/m/s 2E6N/m/s ) Break ( 1.1E7N 5E7N ) r0 ( 30cm 60cm ) )
 CouplingHasRigidConnection ( 0 ) Velocity ( 0.01m/s ) )

 Adheasion ( 0.4 0.8 2 0 )
 DerailRailHeight ( 10cm )
 DerailRailForce ( 2.5*64t )
 DerailBufferForce ( 350kN )
 NumWheels ( 8 )

 Friction ( 100N/m/s 1 -1mph 0 1 5.1N/rad/s 1 -1rad/s 0 1 )

 BrakeEquipmentType ( "Handbrake, Triple_valve, Auxilary_reservoir" )
 BrakeSystemType ( "Air_single_pipe" )

 MaxBrakeForce ( 54kN )
 BrakeCylinderPressureForMaxBrakeBrakeForce ( 56 )
 EmergencyBrakeResMaxPressure ( 72 )
 TripleValveRatio ( 2.53 )
 MaxReleaseRate ( 3 )
 MaxApplicationRate ( 3 )
 MaxAuxilaryChargingRate ( 3 )
 EmergencyResChargingRate ( 3 )
 EmergencyResCapacity ( 0.81 )
 MaxHandbrakeForce ( 20kN )
 NumberOfHandbrakeLeverSteps ( 10 )

 PassengerCapacity ( 4 )

 IntakePoint ( -3.33 0 FuelDiesel )
 IntakePoint ( 3.33 0 FuelDiesel )

 Lights ( 28  Comment ( Svetla CD-1 TADEUS )

 Comment ( Svetelne kuzely )

 Light ( Comment ( Svetelny kuzel tlumeny )
 Type ( 1 )
 Conditions (
 Headlight ( 2 )
 TimeOfDay ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( 0 3 2 )
 Angle ( 25 )
 Transition ( 0 )
 Radius ( 20 )
 ) ) )

 Light ( Comment ( Svetelny kuzel plny )
 Type ( 1 )
 Conditions (
 Headlight ( 3 )
 TimeOfDay ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( 0 3 2 )
 Angle ( 25 )
 Transition ( 0 )
 Radius ( 40 )
 ) ) )

 Comment ( Reflektory )

 Light ( Comment ( Predni reflektor levy tlumeny PK )
 Type ( 0 )
 Conditions (
 Headlight ( 2 )
 Control ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( -0.1 3.07 6.08 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Predni reflektor levy plny PK )
 Type ( 0 )
 Conditions (
 Headlight ( 3 )
 Control ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFFF )
 Position ( -0.1 3.07 6.08 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Predni reflektor levy TR )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( -0.1 3.07 6.08 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Predni reflektor pravy tlumeny PK )
 Type ( 0 )
 Conditions (
 Headlight ( 2 )
 Control ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( 0.1 3.07 6.08 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Predni reflektor pravy plny PK )
 Type ( 0 )
 Conditions (
 Headlight ( 3 )
 Control ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFFF )
 Position ( 0.1 3.07 6.08 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Predni reflektor pravy TR )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( 0.1 3.07 6.08 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Zadni reflektor levy tlumeny ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 2 )
 Control ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( -0.1 2.981 -6.16 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Zadni reflektor levy plny ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 3 )
 Control ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFFF )
 Position ( -0.1 2.981 -6.16 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Zadni reflektor pravy tlumeny ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 2 )
 Control ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFC4 )
 Position ( 0.1 2.981 -6.16 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Light ( Comment ( Zadni reflektor pravy plny ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 3 )
 Control ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFFF )
 Position ( 0.1 2.981 -6.16 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.15 )
 ) ) )

 Comment ( Pozicni predni )

 Light ( Comment ( Predni leve bile PK + TR )
 Type ( 0 )
 Conditions (
 Service ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( -0.95 1.93 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni leve bile posun ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 1 )
 Control ( 2 )
 Unit ( 4 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( -0.95 1.93 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni leve cervene ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 4 )
 Control ( 2 )
 Unit ( 4 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( -0.95 1.68 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni prave bile PK + TR )
 Type ( 0 )
 Conditions (
 Service ( 2 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( 0.95 1.93 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni prave bile posun ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 1 )
 Control ( 2 )
 Unit ( 4 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( 0.95 1.93 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni prave cervene ZK )
 Type ( 0 )
 Conditions (
 Headlight ( 4 )
 Control ( 2 )
 Unit ( 4 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( 0.95 1.68 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Predni prave bile LC )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 1 )
 Unit ( 2 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFF99 )
 Position ( 0.95 1.93 6.77 )
 Azimuth ( 0 0 0 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Comment ( Pozicni zadni )

 Light ( Comment ( Zadni leve bile ZK )
 Type ( 0 )
 Conditions (
 Service ( 2 )
 Control ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( -0.95 1.93 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni leve bile posun PK )
 Type ( 0 )
 Conditions (
 Headlight ( 1 )
 Control ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( -0.95 1.93 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni leve cervene PK )
 Type ( 0 )
 Conditions (
 Headlight ( 4 )
 Control ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( -0.95 1.68 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni leve cervene TR )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( -0.95 1.68 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni prave bile ZK )
 Type ( 0 )
 Conditions (
 Control ( 2 )
 Service ( 2 )
 Unit ( 5 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( 0.95 1.93 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni prave bile posun PK )
 Type ( 0 )
 Conditions (
 Headlight ( 1 )
 Control ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFFA4 )
 Position ( 0.95 1.93 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni prave cervene PK )
 Type ( 0 )
 Conditions (
 Headlight ( 4 )
 Control ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( 0.95 1.68 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni prave cervene TR )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 2 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFF0000 )
 Position ( 0.95 1.68 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )

 Light ( Comment ( Zadni prave bile LC )
 Type ( 0 )
 Conditions (
 Control ( 1 )
 Service ( 1 )
 Unit ( 3 )
 )
 FadeIn ( 0.2 )
 FadeOut ( 0.2 )
 Cycle ( 0 )
 States ( 1
 State (
 Duration ( 0 )
 LightColour ( FFFFFF99 )
 Position ( 0.95 1.93 -6.77 )
 Azimuth ( 180 180 180 )
 Transition ( 0 )
 Radius ( 0.2 )
 ) ) )
 )

 Sound ( "714203_eng.sms" )
 )

Engine ( 714203cd_rev
 Wagon ( 714203cd_rev )
 Name ( "CD 714 203-7 otocena" )
 Type ( Diesel )
 DieselEngineType ( electric )
 MaxCurrent ( 715A )
 MaxPower ( 500kW )
 MaxForce ( 190kN )
 MaxContinuousForce ( 190kN )
 MaxVelocity ( 80km/h )
 DieselEngineSpeedOfMaxTractiveEffort ( 7km/h )
 WheelRadius ( 0.5m )
 Sanding ( 80km/h )
 MaxSandingTime ( 800 )
 NumWheels ( 8 )
 MaxTemperature ( 120 )
 MaxOilPressure ( 90 )
 Sound ( "714203_cab.sms" )
 CabView ( "714023_rev.cvf" )
 HeadOut ( 1.6 3.5 1.55 )

 BrakesEngineBrakeType ( Air_single_pipe )
 BrakesTrainBrakeType ( Air_single_pipe )
 BrakesEngineControllers( "Independent, Train, Dynamic" )

 AirBrakesAirCompressorPowerRating ( 2 )
 AirBrakesMainMaxAirPressure ( 144 )
 AirBrakesCompressorRestartPressure ( 116 )
 AirBrakesMainMinResAirPressure ( 0 )
 AirBrakesMainResVolume ( 40 )
 AirBrakesAirUsedPerPoundsOfBrakePipePressure ( 1.0 )
 AirBrakesHasLowPressureTest( 0 )
 AirBrakesIsCompressorElectricOrMechanical ( 1 )

 EngineBrakesControllerHasProportionalBrake ( 0 )
 EngineBrakesProportionalBrakeLag ( 2.53 )
 EngineBrakesControllerMaxReleaseRate ( 3 )
 EngineBrakesControllerMaxApplicationRate ( 3 )
 EngineBrakesControllerMaxSystemPressure ( 73 )
 EngineBrakesControllerFullServicePressureDrop ( 23 )
 EngineBrakesControllerMinPressureReduction ( 50 )
 EngineBrakesControllerMinSystemPressure ( 0 )
 EngineBrakesControllerEmergencyBrakeTimePenalty ( 0 )

 TrainBrakesControllerMinPressureReduction ( 0.1 )
 TrainBrakesControllerMaxQuickReleaseRate ( 5 )
 TrainBrakesControllerMaxReleaseRate ( 2 )
 TrainBrakesControllerMaxApplicationRate ( 2 )
 TrainBrakesControllerEmergencyApplicationRate ( 8 )
 TrainBrakesControllerMaxSystemPressure ( 73 )
 TrainBrakesControllerFullServicePressureDrop ( 73 )
 TrainBrakesControllerMinSystemPressure ( 0 )
 TrainPipeLeakRate ( 0.1 )
 TrainBrakesControllerEmergencyBrakeTimePenalty ( 0 )

 EngineVariables ( 3600 )
 MaxDieselLevel ( 4000l )
 DieselUsedPerHourAtMaxPower ( 200l )
 DieselUsedPerHourAtIdle ( 10l )
 DieselSmokeEffectInitialMagnitude ( 1.1 )
 DieselSmokeEffectMaxMagnitude ( 2.5 )
 DieselSmokeEffectInitialSmokeRate ( 0.5 )
 DieselSmokeEffectMaxSmokeRate ( 2.5 )
 DieselEngineStallRPM ( 600 )
 DieselEngineIdleRPM ( 600 )
 DieselEngineMaxRPM ( 1800 )
 DieselEngineMaxRPMChangeRate ( 100 )

 DoesBrakeCutPower ( 1 )
 DoesHornTriggerBell ( 0 )

 DynamicBrakesResistorCurrentLimit ( 650 )
 DynamicBrakesDelayTimeBeforeEngaging ( 0 )
 DynamicBrakesMaxAirBrakePressure ( 30 )
 DynamicBrakeHasAutoBailOff ( 0 )
 DynamicBrakesMaximumForce ( 110kN )
 DynamicBrakesHigherSpeedCurveExponent ( 2 )
 DynamicBrakesLowerSpeedCurveExponent ( 2 )
 DynamicBrakesMaximumSpeedForFadeOut ( 130 )
 DynamicBrakesMaximumEffectiveSpeed ( 60 )
 DynamicBrakesFadingSpeed ( 7 )
 DynamicBrakesMinUsableSpeed ( 2 )
 DynamicBrakesCutInSpeed ( 2 )
 DynamicBrakesCutOutSpeed ( 2 )
 DynamicBrakesEffectAtMaximumFadeOut ( 1 )

 Effects ( DieselSpecialEffects (
 Exhaust1 ( 0.6 4.5 0.35 0 1 0 0.1 )
 Exhaust2 ( 0.6 4.5 0.15 0 1 0 0.1 )
 ) )

 VigilanceMonitor (
 MonitoringDeviceMonitorTimeLimit ( 27 )
 MonitoringDeviceAlarmTimeLimit ( 17 )
 MonitoringDevicePenaltyTimeLimit ( 0 )
 MonitoringDeviceCriticalLevel ( 0 )
 MonitoringDeviceResetLevel ( 0 )
 MonitoringDeviceAppliesFullBrake ( 0 )
 MonitoringDeviceAppliesEmergencyBrake ( 1 )
 MonitoringDeviceAppliesCutsPower ( 1 )
 MonitoringDeviceAppliesShutsDownEngine ( 0 )
 MonitoringDeviceResetOnZeroSpeed ( 1 )
 MonitoringDeviceResetOnResetButton ( 1 )
 )
 EmergencyStopMonitor (
 MonitoringDeviceMonitorTimeLimit ( 0 )
 MonitoringDeviceAlarmTimeLimit ( 0 )
 MonitoringDevicePenaltyTimeLimit ( 0 )
 MonitoringDeviceCriticalLevel ( 0 )
 MonitoringDeviceResetLevel ( 0 )
 MonitoringDeviceAppliesFullBrake ( 1 )
 MonitoringDeviceAppliesEmergencyBrake ( 1 )
 MonitoringDeviceAppliesCutsPower ( 1 )
 MonitoringDeviceAppliesShutsDownEngine ( 0 )
 MonitoringDeviceResetOnZeroSpeed ( 1 )
 MonitoringDeviceResetOnResetButton ( 1 )
 )

 EngineControllers (
 AWS ( 0 1 0 )
 BailOffButton ( 0 1 0 )
 BellToggle ( 0 1 0 )
 Brake_Dynamic ( 0 1 0.1 0.0
 NumNotches ( 10
 Notch ( 0.0 0 Dummy )
 Notch ( 0.2 0 Dummy )
 Notch ( 0.3 0 Dummy )
 Notch ( 0.4 0 Dummy )
 Notch ( 0.5 0 Dummy )
 Notch ( 0.6 0 Dummy )
 Notch ( 0.7 0 Dummy )
 Notch ( 0.8 0 Dummy )
 Notch ( 0.9 0 Dummy )
 Notch ( 1.0 0 Dummy )
 ) )
 Brake_Engine ( 0 1 0.1 0.0
 NumNotches ( 3
 Notch ( 0.0 0 EngineBrakesControllerReleaseStart )
 Notch ( 0.5 0 EngineBrakesControllerNeutralhandleOffStart )
 Notch ( 0.9 0 EngineBrakesControllerFullServiceStart )
 ) )
 Brake_Hand ( 0 1 0.1 0
 NumNotches ( 1
 Notch ( 0 1 Dummy )
 ) )
 Brake_Train ( 0 1 0.1 0.5
 NumNotches ( 5
 Notch ( 0.0 0 TrainBrakesControllerFullQuickReleaseStart )
 Notch ( 0.3 0 TrainBrakesControllerReleaseStart )
 Notch ( 0.5 0 TrainBrakesControllerApplyStart )
 Notch ( 0.7 0 TrainBrakesControllerContinuousServiceStart )
 Notch ( 0.9 0 TrainBrakesControllerEmergencyStart )
 ) )
 Combined_Control ( 0 2 1 1 throttle dynamic )
 DirControl ( -1 0 1 1 )
 EmergencyStopToggle ( 0 1 0 )
 Headlights ( 0 0.25 1 0 )
 Horn ( 0 1 0 )
 Sanding ( 0 1 0 )
 Throttle ( 0 1 0.01 0
 NumNotches ( 10
 Notch ( 0.00 0 Dummy )
 Notch ( 0.04 0 Dummy )
 Notch ( 0.08 0 Dummy )
 Notch ( 0.11 0 Dummy )
 Notch ( 0.17 0 Dummy )
 Notch ( 0.27 0 Dummy )
 Notch ( 0.42 0 Dummy )
 Notch ( 0.61 0 Dummy )
 Notch ( 0.81 0 Dummy )
 Notch ( 1.00 0 Dummy )
 ) )
 Vigilance ( 0 1 0 )
 Wipers ( 0 1 0 )
 )

 Description (
 "Rada CD 714 je urcena pro provoz na vedlejsich tratich s promennou zatezi nakladnich vlaku, \n"+
 "posun nebo v osobni doprave s pripojnymi vozy 010, 021, 042, 043.\n"+
 "Rekonstrukce rady 735.\n\n"+
 "Trvaly vykon spal. motoru:\n"+
 " 2x250 kW ( 714.001-004 ) \n"+
 " 2x300 kW ( 714.005-029;714.2 ) \n"+
 "Prenos vykonu: el.AC/DC - 2x260kW\n"+
 "Max.rychlost: 80km/h\n"+
 "Vyska: 4405 mm\n"+
 "Sirka: 3050 mm\n"+
 "Delka: 14240 mm\n"+
 "Sluz. hmotnost:\n"+
 " 56t ( 714.001,02 ) \n"+
 " 64t ( 714.003-29 ) \n"+
 " 60t ( 714.2 ) \n"+
 "Uspor. pojezdu: BoBo \n"+
 "Verze nastaveni 2012-05-15-b57-kuple70 \n"+
 ". "
 )

 EngineOperatingProcedures (
 " \n"+
 " .\n"+
 " " )
 )

Dan J. · 18 pro 2022

Jinak už mohly být 4 aktivity venku, místo toho celý den laboruji s eng souborem.

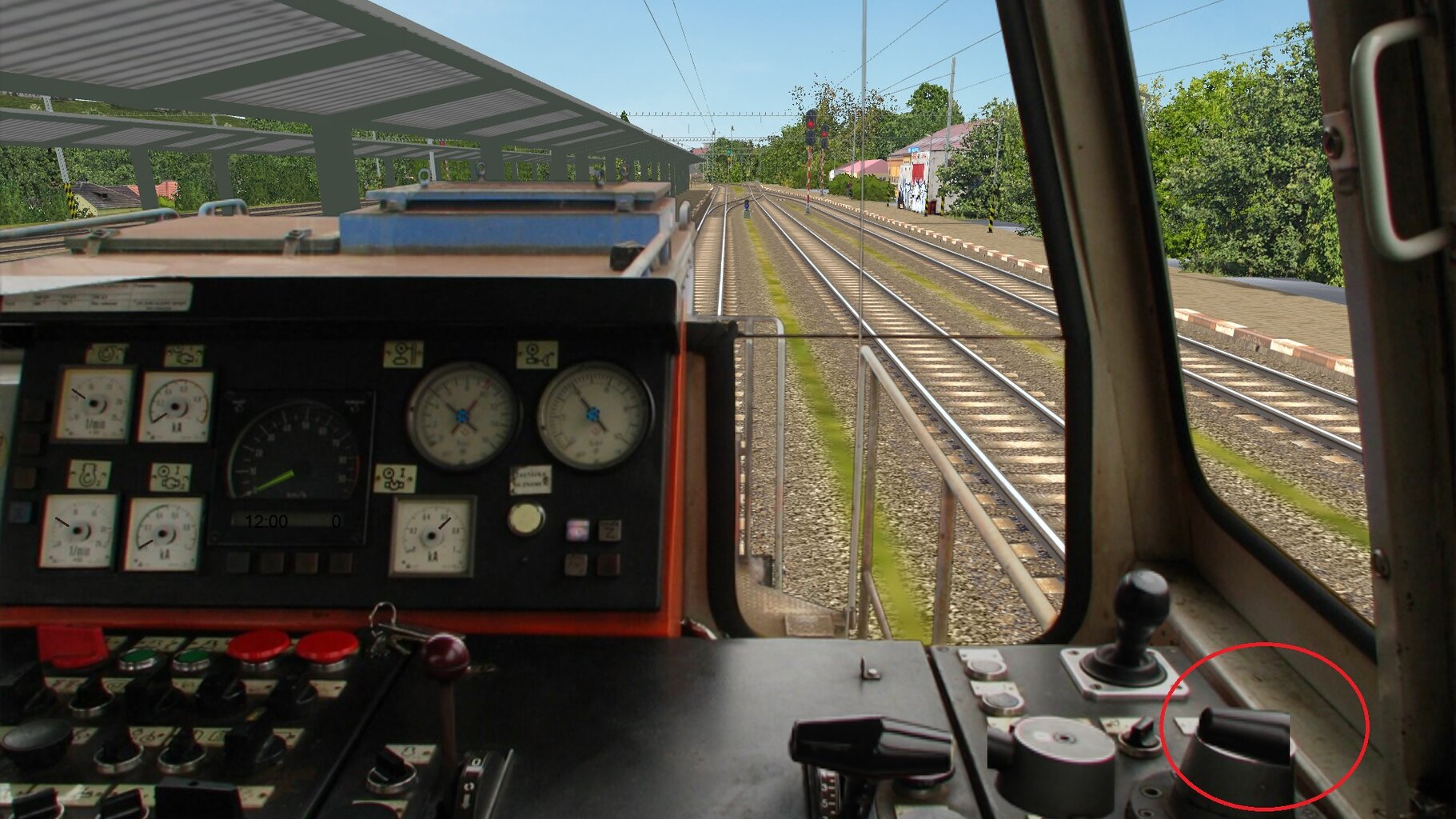

ČD 714 normální model funguje bez chyby, Rv model taky, jen má blbě tu páku v kabině, toť vše.

Icik · 18 pro 2022

Stáhl jsem si od Pikka jeho verzi 714.

Do engu přepiš:

Kód:

 Brake_Train ( 0 1 0.1 0.5
 NumNotches ( 5
 Notch ( 0.0 0 TrainBrakesControllerFullQuickReleaseStart )
 Notch ( 0.3 0 TrainBrakesControllerReleaseStart )
 Notch ( 0.5 0 TrainBrakesControllerNeutralhandleOffStart )
 Notch ( 0.7 0 TrainBrakesControllerApplyStart )
 Notch ( 0.9 0 TrainBrakesControllerEmergencyStart )
 ) )

V kabině cvf a cvf_rv přepiš:

Kód:

Lever ( Type ( TRAIN_BRAKE LEVER )
 Position ( 434 331 160 113 )
 Graphic ( "714023_OBE.ace" )
 Style ( NOT_SPRUNG )
 MouseControl ( 1 )
 NumFrames ( 5 5 1 )
 NumPositions ( 5 0 1 2 3 4 )
 NumValues ( 5 0.0 0.3 0.5 0.7 0.9 )
 Orientation ( 0 )
 DirIncrease ( 0 )
 ScaleRange ( 0 1 )
 )

Dan J. · 18 pro 2022

Icik napsal:
Stáhl jsem si od Pikka jeho verzi 714.

Super, díky moc, vše už je funkční.

Venny · 19 pro 2022

A nezapomeňte opravit i případnou odchylku v path a adresáři souboru cvf. Např. cab417-023 vs. cab714023 vs. cab714. To by fakt nefachčilo.

Samozřejmě jen když máte kabinu MIMO adresář vozidla.

Dan J. · 19 pro 2022

Ale fachčí vše dokonale. Je použit cvf. u modelu pro OR a upraven dle návodu od Icika a vše jede perfektnĕ. Zanedlouho vujde aktivita, tak pak můžeš stroj protáhnout z Brna do Šatova.

Martin S. · 3 úno 2023

Zdravím. Je mi blbý se ptát, ale... Je ještě nějaká šance, byť malinká, že se dočkáme znovuzveřejnění balíku ČD 749 a případně i ČDC 181?

Pikku · 15 zář 2025

Nějaké updaty na mých stránkách, většinou modely, co jsou tak staré, že mohou klidně nastoupit do první třídy. Je to nějak sestaveno do snad funkčních balíčků. Zamračené i hektory mají 3Dcaby. Je to pro ORMG nebo pro ORTS 1.5. Není to samozřejmě jen moje práce, textury dělal i @JohnRailman a další. Ladění samozřejmě @Josef Vogeltanz . Chystá se i zamračená s LED osvětlením, ale všechno má svůj čas.
slovenská zamráča
slovenský nákladní hektor

Pikku · 15 zář 2025

Luky napsal:
Moc pěkný Hektor a Bardotka. Nešel by prosím u těch Bardotek nastavit zvuk trošku víc nahlas jako u Hektora, abych nemusel zesilovat PC znatelně víc, když jedu s Bardotkou.

Vůbec netuším jak na to a co s tím. Mě zase přijde ten hektor moc nahlas.

C3rv · 15 zář 2025

Luky napsal:
Hektor je i ve skutečnosti celkem hlasitý.

ale ne až tolik

Motorové lokomotivy (nejen) ČKD pro Open Rails z dílny Pikku Locomotive Works Inc.

Pomocník strojvedoucího

Strojvedoucí

Strojvedoucí

Strojvedoucí

Provozní technik

Pomocník strojvedoucího

Strojvedoucí

Strojvedoucí

Pomocník strojvedoucího

Pomocník strojvedoucího

Strojvedoucí

Strojvedoucí

Pomocník strojvedoucího

Strojvedoucí

Průvodčí

Strojvedoucí

Provozní technik

Pomocník strojvedoucího

Pomocník strojvedoucího

Hradlař
